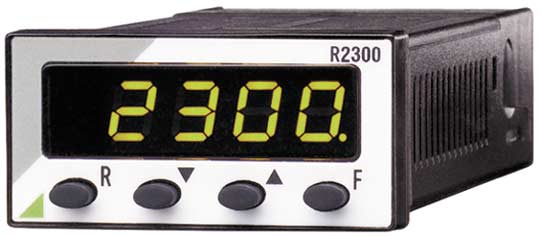

The R2300 ultra-compact digital controller offers top functionality
and flexibility.
It is used primarily for controlling, displaying and monitoring
temperatures in very small machines, devices and laboratory instruments,
which are also used in harsh environments (IP 65). Control parameters
are readily determined by means of self-optimization, and are used
as the basis for the selected PID or PI algorithm.
Two and three-step controller
Universal input: thermocouple, PT100, linear (mV, mA)
Universal alarm monitoring with actuation suppression
Heating circuit monitoring
Setpoint ramps for increases and decreases
Soft start function
Order options for outputs and auxiliary power:
2 relay outputs, 1 relay and one logic output, 2 logic outputs
Auxiliary power: 100 to 240 VAC, 24 VAC/DC
|
