POINTAX 6000M parameters can be freely selected, which allows for
adapting to a variety of measuring tasks for the logging of electrical
quantities and temperatures with PT 100 sensors or thermocouples.
Pressure and moisture, as well as other process quantities, are
connected via measuring transducers, and special characteristic
curves can be implemented by means of user specific linearization.

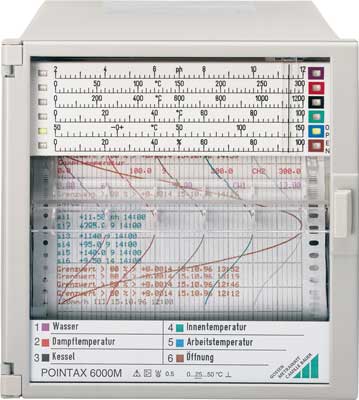

The POINTAX 6000M is available as a scale instrument with 1 to 6
scale graduations.
The entire plotting area can be
used as a recording range, or separate traces can be assigned to
each individual channel. Recording direction can be selected individually
for each channel. Representation can be accomplished in a linear
fashion with one or two additional break points, or in a logarithmic
fashion. In addition, up to 4 event markers can be included in the
chart.
|
