Digital controls with analog operation: all parameters can be configured
by simply turning a knob. Especially positive feedback is coming
in from typical fields of application including machinery and device
manufacturing.

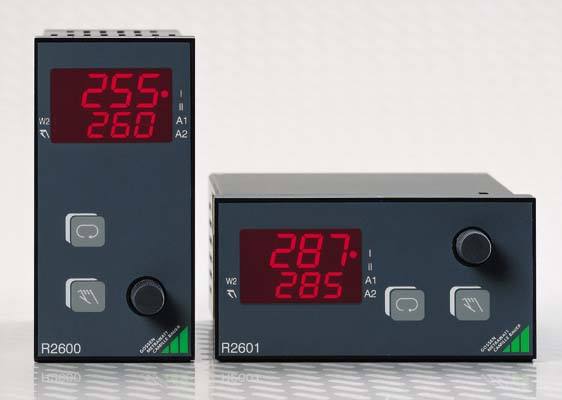

The single channel temperature controller with a high-performance
PDPI algorithm and self-optimization offers a wide range of functions,
even with the standard model. This reduces the number of product
variants and warehouse costs, and simplifies service operations.
The following functions can be activated or changed
via software or with DIP switches:
Digital display of actual value and setpoint /
regulated temperature / heating current
Push-button manual operation
Relay or transistor output
Externally activated alternative setpoint
Rising or falling setpoint ramp
Regulated temperature is maintained in the event of sensor failure
Heating circuit and heating current monitoring
Two limit contacts with absolute/relative monitoring, start-up inhibit,
make or break contact
Adaptable to export markets: 230 / 110 V and ° C or F
Depending upon order configuration, the controller is equipped with
the following characteristics:
Two position, three position, step or continuous-action
controller
Differential or follow-up control with second input
Sensor input for thermocouple types J, L, K, B, S, R, N and PT100
(2/3-wire) or standard signals: 0/2 .. 10 V and 0/4 .. 20 mA
RS 232 / RS 485 communications interface
Auxiliary voltage: 24 VAC, 24 VDC, 110 VAC / 230 VAC
|
