单通道温度控制器适用于机械和设备制造过程

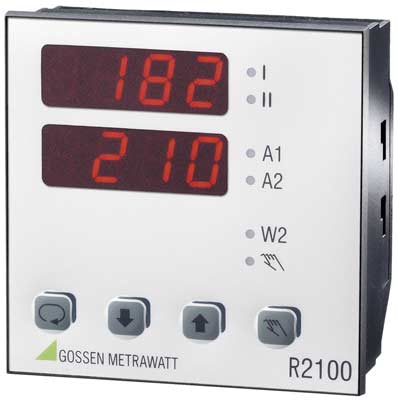

The R2100 temperature controller
replaces the GTR0210 analog controller and assures long-term fulfillment
of guarantee obligations in machinery and equipment manufacturing.
Design, features, connection designations and controller performance
have all been retained, allowing for extremely easy change-over
to the new model which is described in a special set of operating
instructions.
Use of the newest technologies assures excellent ease of operation
and display convenience, exemplary control quality, minimal wear
and tear and ideal suitability for aggressive environments.
Harmonic-free PDPI control algorithm
Self-optimization for ideal control parameters
Digital displays for actual value and setpoint (manipulating factor,
heating current)
Setpoint can be keyed in
Control outputs can be shut down with a single keystroke
Programmable limit values
Sensor error display
Heating current acquired with an external transformer
IP 65 protection at front panel
Extremely small installation depth of only 50 mm, or 70 mm with
limit contacts
Order options:
Controller as two-position or three-position controller
Long (12 to 120 s), medium (6 to 75 s)
or short (1 to 15 s) time response
Type L, J, K, R and S thermocouple,
PT100 (2-wire) or direct current (5 mA, 20 mA) measuring ranges
1st switching output: relay or transistor
2 limit contacts (MIN / MAX)
Broken sensor fuse, direct and reverse-acting
Auxiliary voltages: 110 VAC , 120 VAC , 220 VAC , 240 VAC
|
