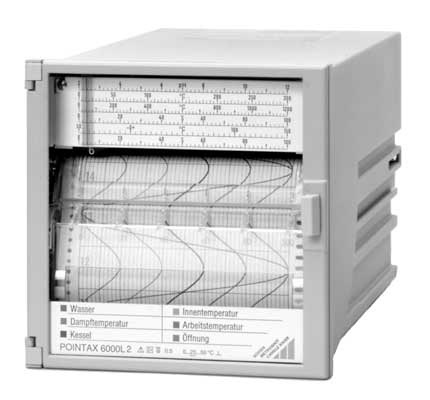

The POINTAX 6000L2 is a microprocessor controlled point recorder.
The recorder measures process signals ranging from 0/4 ... 20 mA
and 0 ... 1 V. Additional current and voltage signals can be measured
by means of plug-on shunts or voltage dividers.
Configuration of the recorder for specific measurement tasks is
performed by means of software with the integrated keypad, or with
a PC in combination with the parameters configuring program PARATOOL
P6000L2 via the RS 485 interface.
Limit contact outputs, remote advance selection and a stand-by function
can be selected as options.
* 6 measuring channels
* Last printed point visible from front
* Electrically isolated, earth-free measuring channels
* Process signals ranging from 0/4 ... 20 mA, 0 ... 1 V
* Front panel dimensions: 144 mm x 144 mm, installation depth: 250
mm
* Combination plotter for paper rolls (32 m) or continuous fan-fold
paper (16 m)
* RS 485 interface
|
