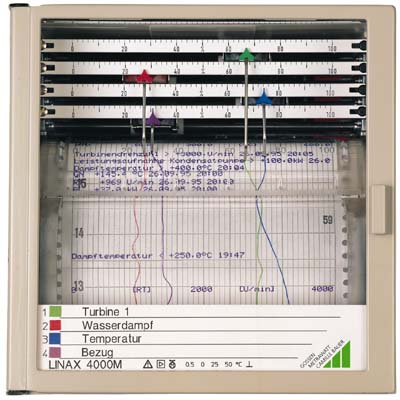

Freely selectable parameters allow for the adaptation of the LINAX
4000M to measuring tasks including the recording of temperature
with Pt 100 sensors or thermocouples. Pressure, moisture or electrical
quantities can be fed to the recorder via measuring transducer.
Parameter settings are selected at the keypad, via the RS 485 interface
or with the RS 232 adapter. Integrated limit monitoring and binary
inputs and outputs can be used for process control.
Instead of using a line channel, measurement values are documented
graphically (as a dotted line) and alphanumerically. The printer
channel furnishes limit value messages with date, time, chart speed
and freely selectable clear text. Additional time markers portray
binary process conditions.
|
