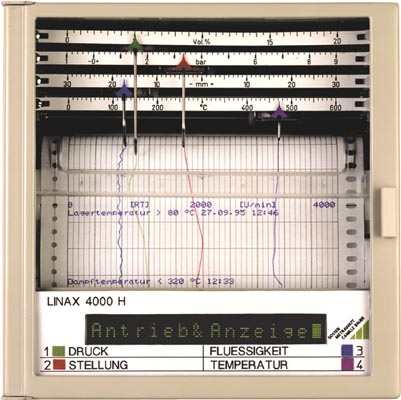

In addition to the features offered by the LINAX 4000M, The LINAX
4000H provides explicit information concerning measurement values
and reads out texts to the digital display. Parameter settings for
the instrument are also selected with the help of this display.
All of the parameters can be set with the control panel, or via
the RS 485 / RS 232 interface. All selected parameters are subjected
to an automatic plausibility test in order to prevent erroneous
settings.
Measurement value storage assures that none of your data are lost
when the LINAX 4000H is switched to the stand-by mode.
The printer channel allows for the recording of mean values, sums
or minimum and maximum values at a given interval.
Limit values are monitored both statically and dynamically according
to gradient.
The LINAX 4000H is almost maintenance free thanks to its 64 m recording
chart, and can be left in unmanned stations for the long-term recording
of measurement values.
The minimum consumption of felt pens (each pen has a capacity of
1300 m) lengthens the maintenance interval as well, and pens can
be replaced quickly and easily.
|
